Cutting & Trimming

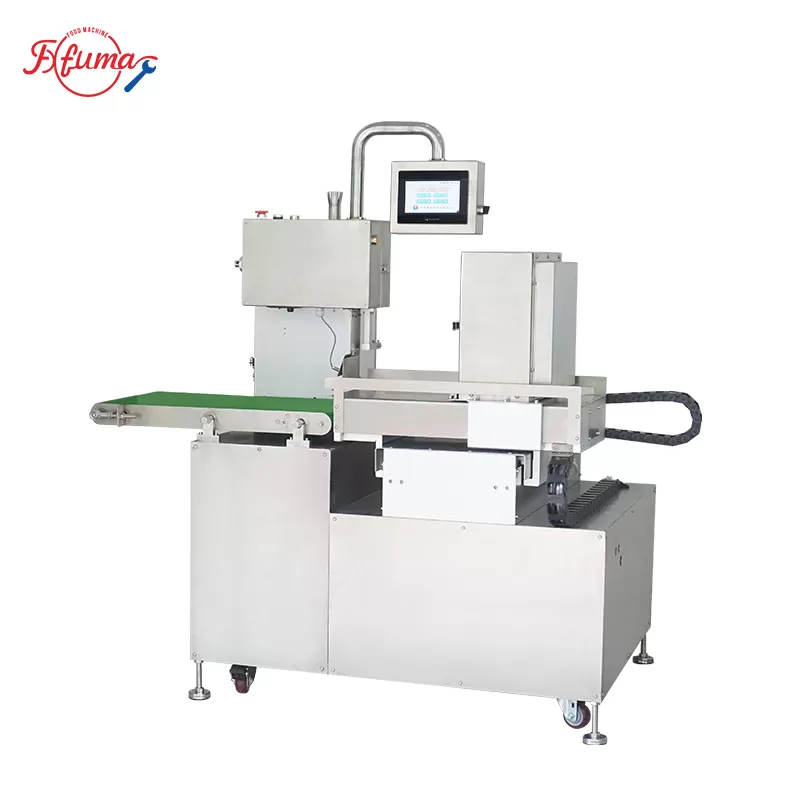

Automatic bone cutting machine can automatically complete a series of operations such as feeding, cutting, and unloading. Manual operation only requires placing the materials, without the need for excessive human intervention. This greatly improves work efficiency and reduces labor costs.
Specifications

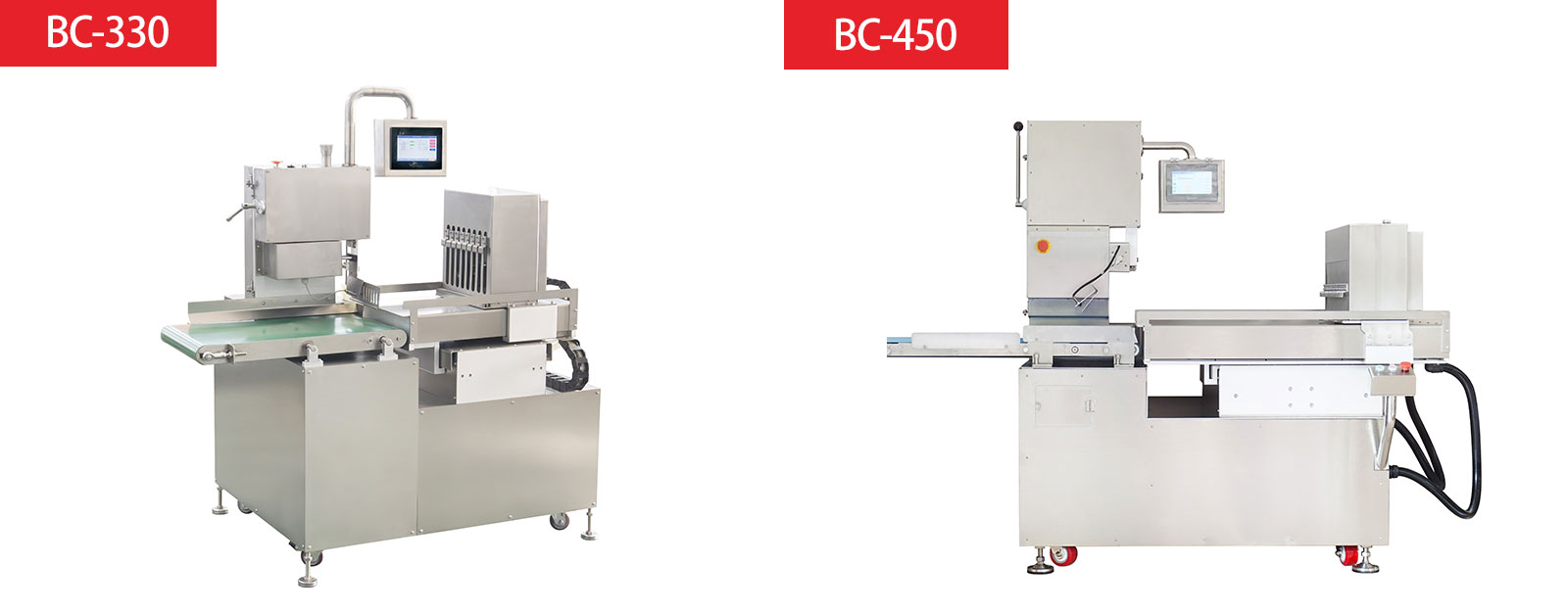

| Model | BC-330 (small type) | BC-450 (large type) |
| Voltage | 380V | 380V |
| Power | 3.5kw | 5.5kw |
| Size | 1200*1000*1650mm | 1350*1820*1700mm |
| Capacity | 400-800kg/h | Contact us |
| Bone saw size | 3084*16*0.56*4T | 3084*16*0.56*4T |
| Cutting speed | 34m/ds | 34m/ds |
Description
About automatic bone cutter:
When staff place materials on the cutting table, this fully automatic bone saw starts its intelligent and efficient mode. The cutting table, using advanced sensors and algorithms, quickly identifies material shapes and sizes. Following a pre-set program, it arranges materials optimally, ensuring each is accurately pushed to the cutting position, laying the groundwork for efficient and precise cutting.

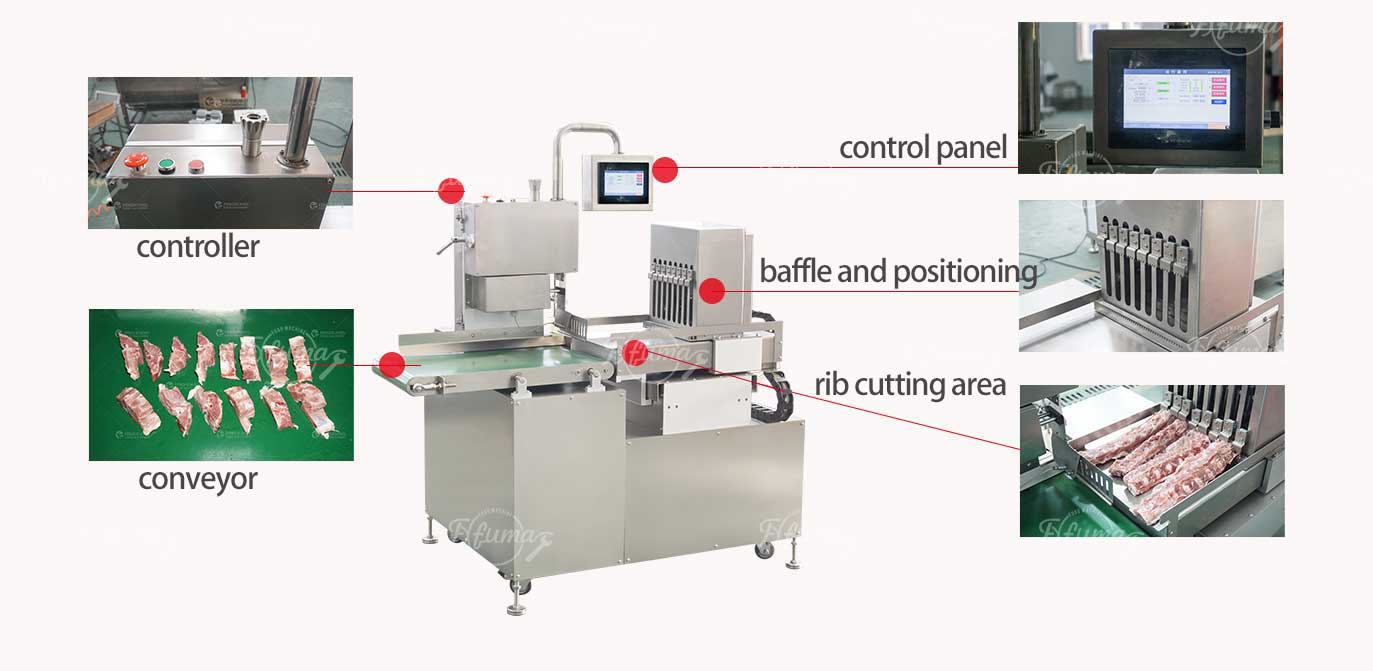

Bone saw details:
1. Control panel
2. Baffle and positioning
3. Rib cutting area
4. Controller

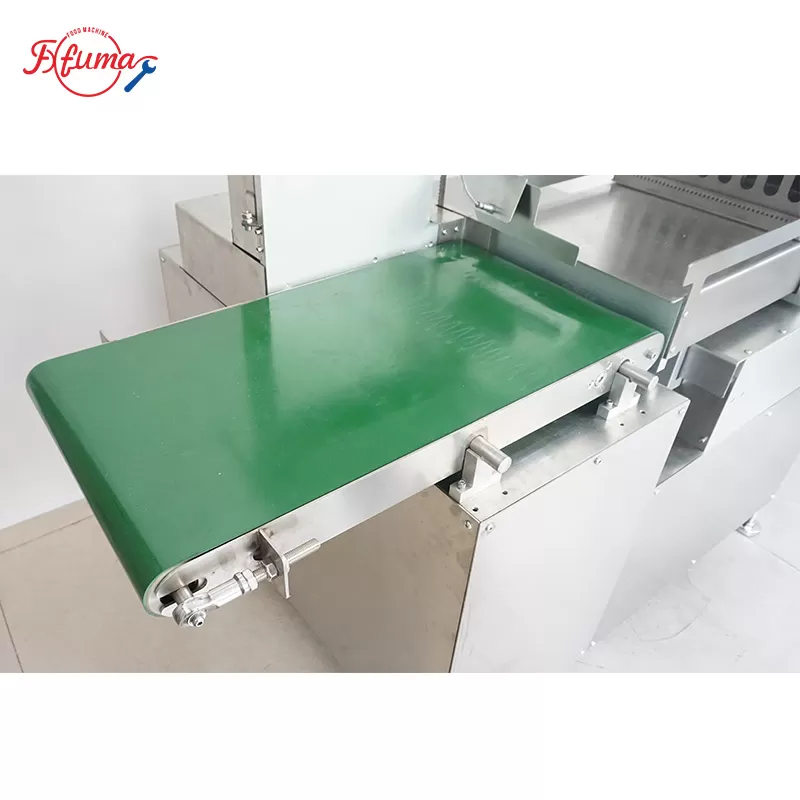

5. Food-grade output conveyor
Wide Application:
This fully automatic bone sawing machine is extremely powerful in function and demonstrates excellent applicability in cutting materials. It can easily handle ingredients such as frozen fish, pork ribs, and pig trotters, which are bony and irregular in shape.
Cutting effect

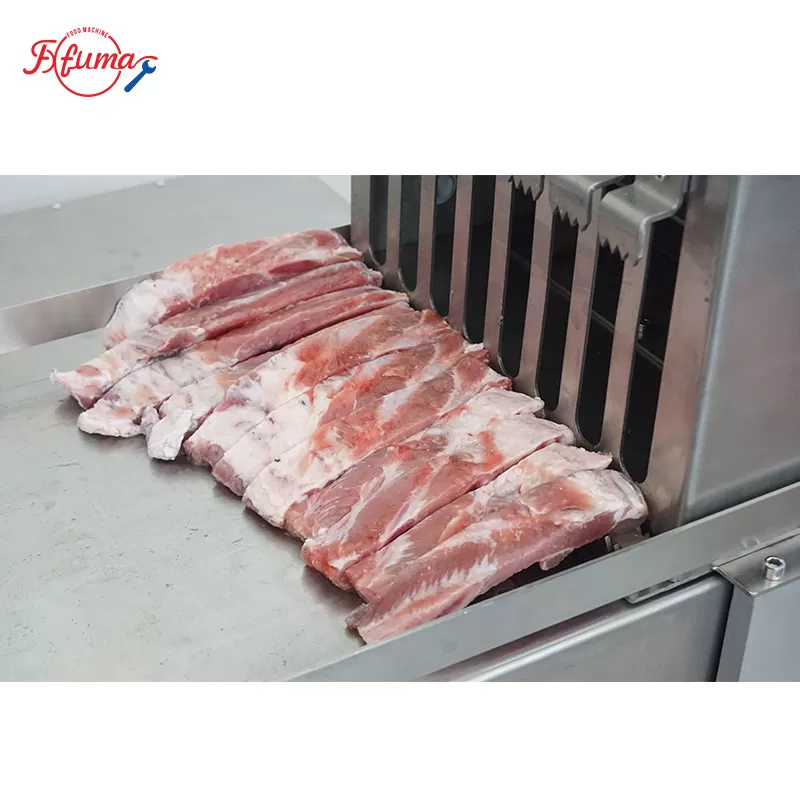

The cutting table arranges the food neatly and orderly, ensuring that food is firmly fixed in place during the cutting process. When food is accurately pushed towards the saw blade, the saw blade will cut them with extreme precision, creating small pieces of uniform size.

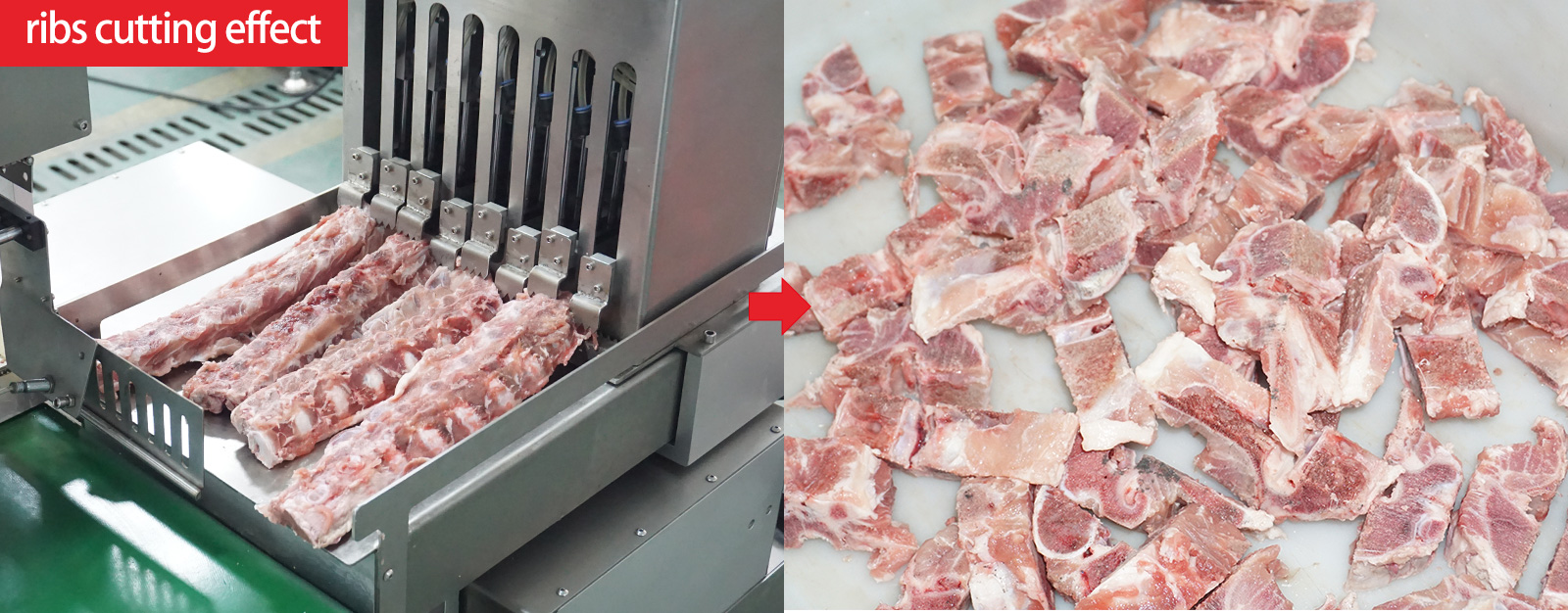

1. Ribs cutting into small pieces

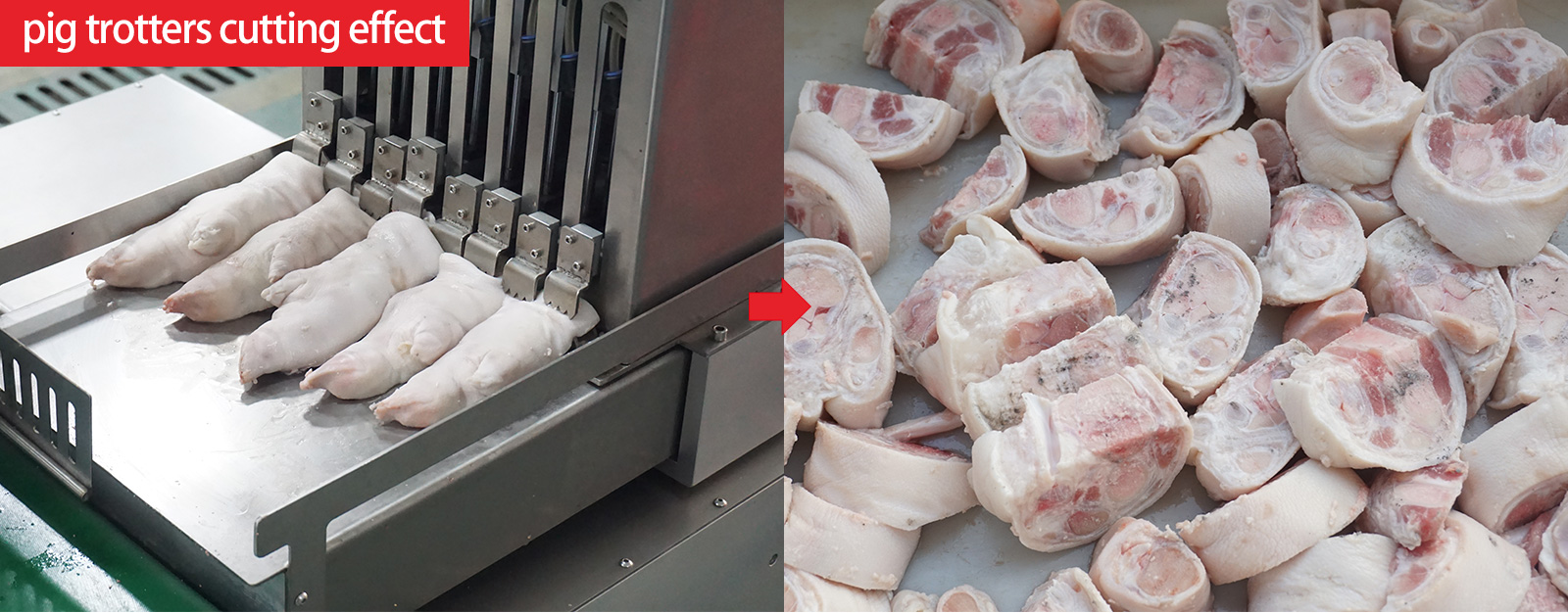

2. Pig trotters cutting into pieces
PRODUCT CLASSIFICATION
Contact Us
+86 400-188-3313
+86 199 2706 5265
+86 758 278 8707
RELATED PRODUCTS
FSC-333 Industrial cheese shredder and grater
FSC-333 industrial cheese grater drives the blade assembly to rotate at a high speed through an electric motor. By utilizing the centrifugal force generated by the rotation and the frictional force of the blades, the cheese placed into the feeding inlet is grated into filaments and then discharged from the discharging outlet.

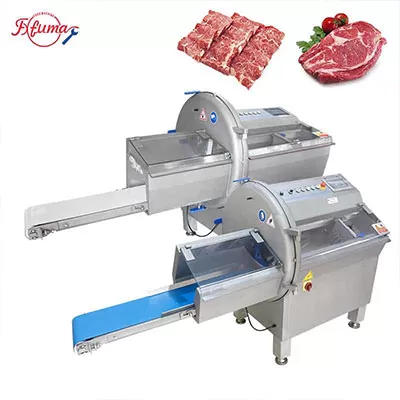

FKP-21 Heavy-duty steak cutting machine meat portioning machine
