Cutting & Trimming

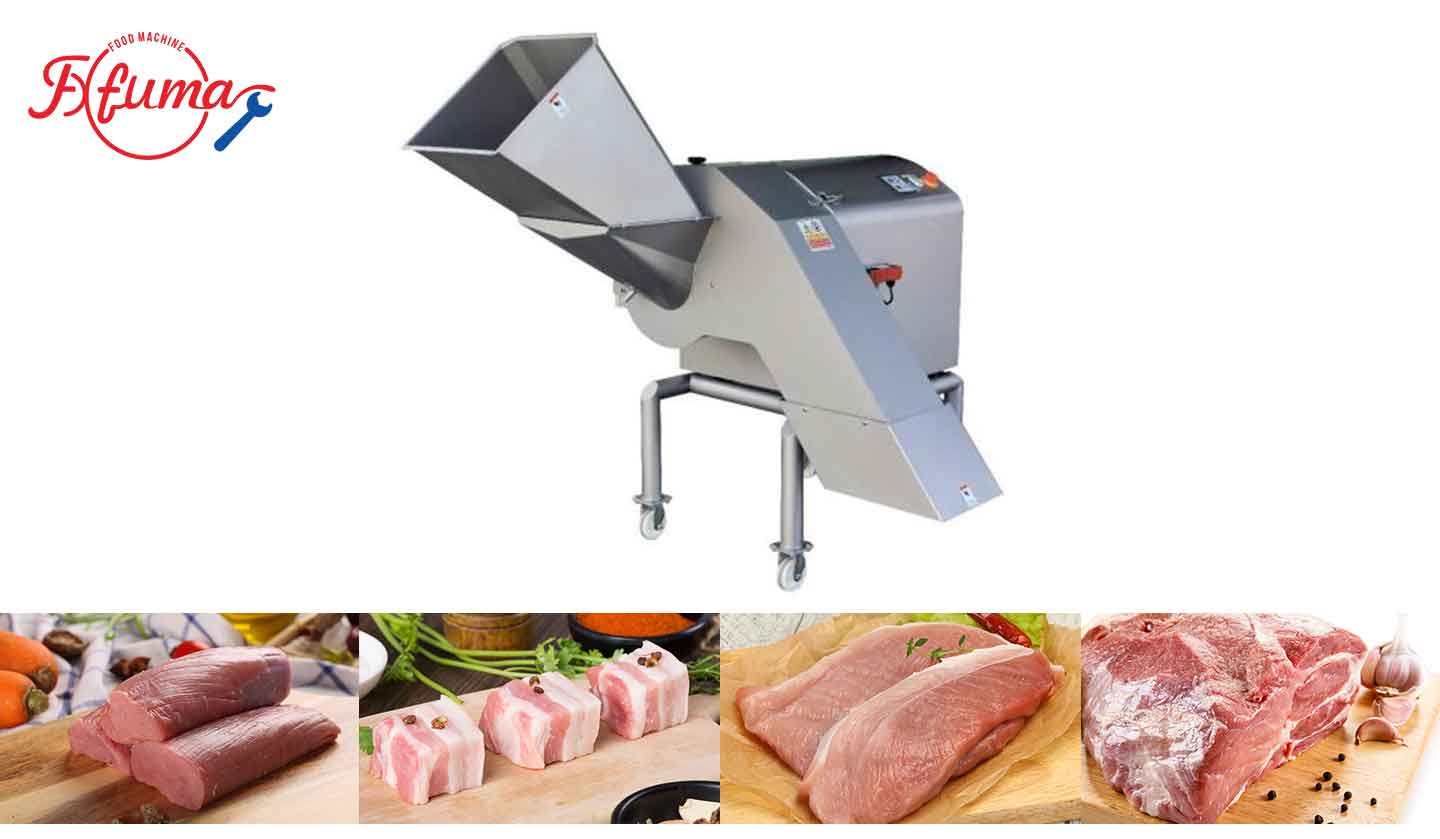

A stereoscopic meat dicing machine is a device widely used in the food processing industry and other sectors. This machine is capable of cutting raw materials such as vegetables, fruits, meats, etc. into cubes, strips or slices, and it features high efficiency, high precision, and easy operation. Through different combinations and adjustments of cutters, the three-dimensional dicing machine can achieve cutting in various shapes and sizes, meeting diverse processing requirements.
Specifications
| Model | CD-3000 |
| Voltage | 220/380V.3PH |
| Power | 1.5KW |
| Weight | 422KG |
| Size | 1750*1250*1600mm |
| Input height | 1310MM |
| Output height | 385MM |
| Cutting size | 5/6/8/10/12/15/20/25MM |
| Capacity | 1000-2000KG/HR |
Description

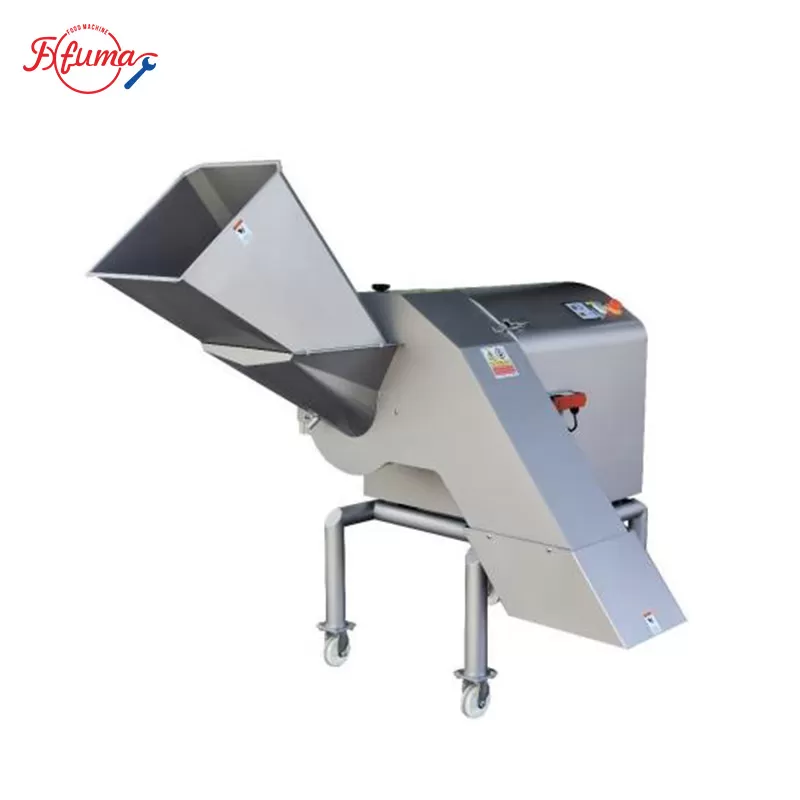

About meat cubes dicing machine:
The large meat dicing machine applies to various places such as central kitchens, group catering establishments, meat food processing plants, enterprises, pet food processing industries, school cafeterias, fresh vegetable distribution centers, and food processing factories. It can dice products like frozen pork, frozen beef, and ham. This machine is easy to operate, simple to clean, fast in speed, high in output, and convenient to maintain, thus capable of meeting the production needs of a wide range of users.
Dicing effect：
Features:
●Multifunctionality: By replacing different cutters, various cutting methods, such as dicing, strip cutting, and slicing, can be achieved, making it suitable for the processing of a variety of raw materials.
●High Efficiency: Compared with manual cutting, the three-dimensional dicing machine significantly improves production efficiency, which is particularly important for large-scale production.
●High Precision: The machine can precisely control the cutting size and shape, ensuring the consistency and professionalism of the products.
●Easy Operation: Most three-dimensional dicing machines are designed with a user-friendly operation interface, which is simple to learn and easy to master.
●Safety: Compared with manual cutting, machine operation reduces the chance of direct contact with the cutters, reducing the risk of work-related injuries.
