Cutting & Trimming

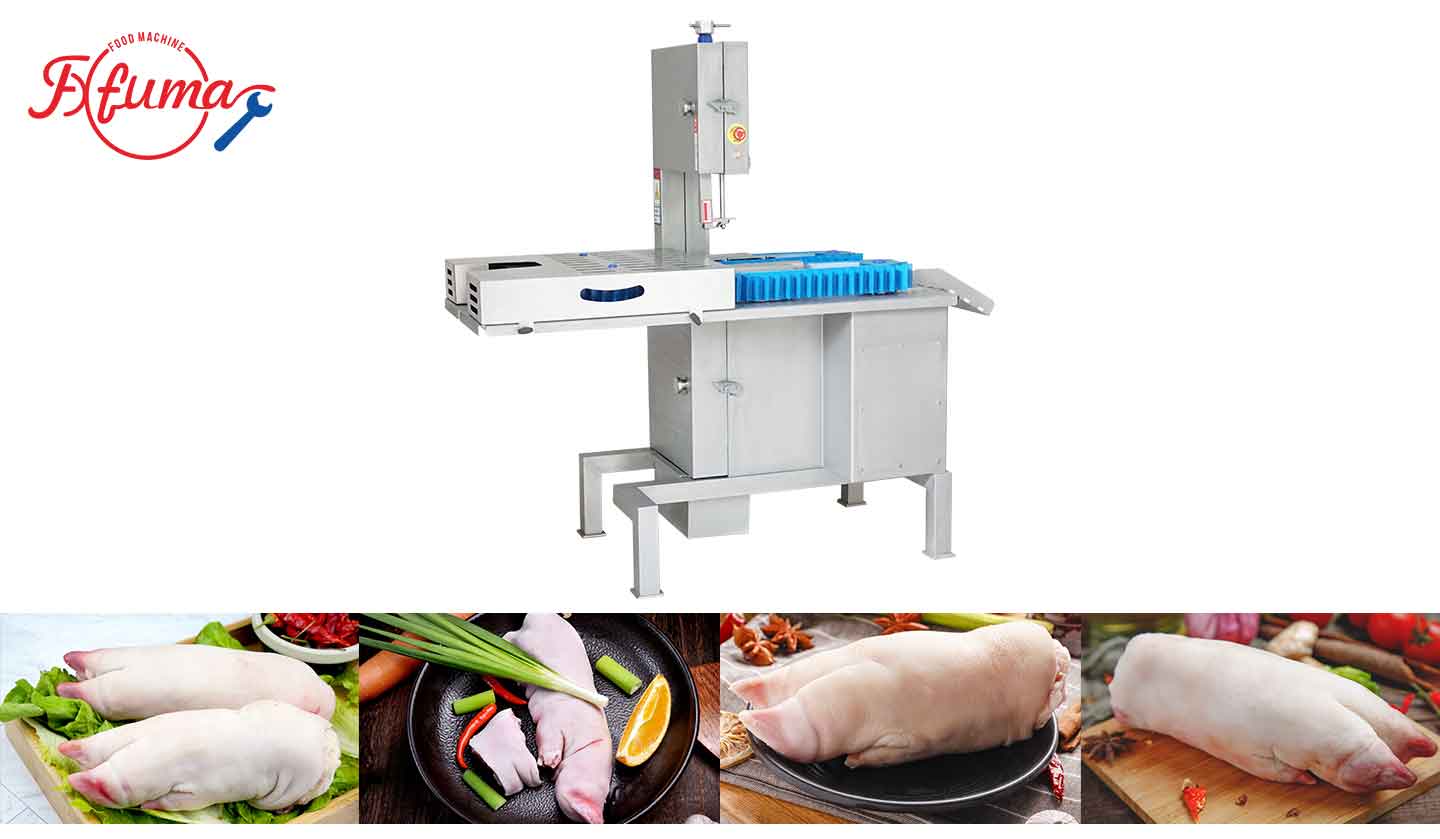

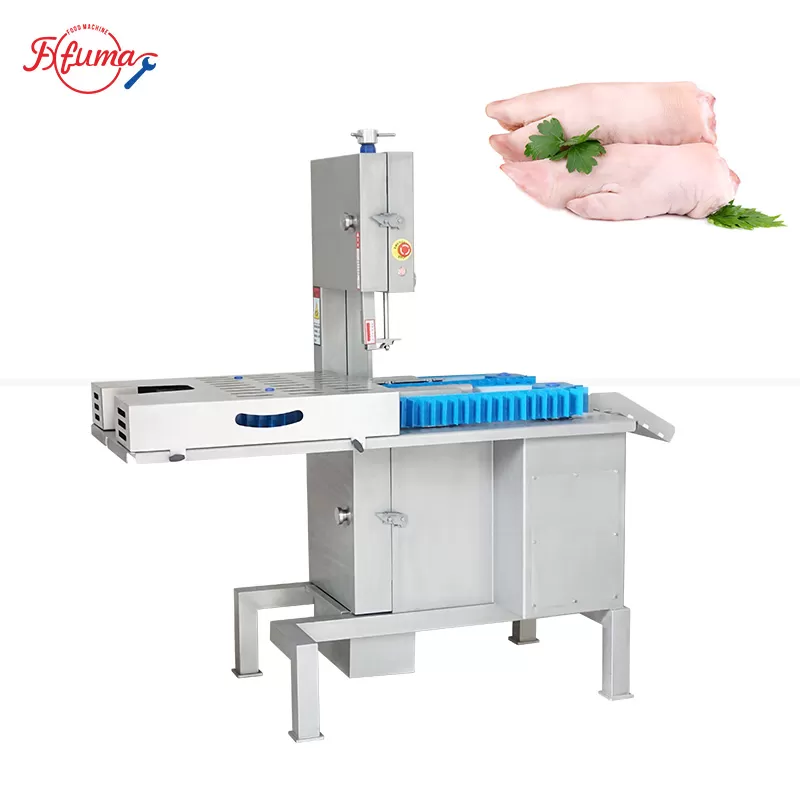

This machine is used to divide the pig's feet in half, and the automatic conveying function is designed on both sides, which can automatically convey the raw materials in half, which guarantees the safety of personnel operation. It is suitable for pig feet at different temperatures, and it is also suitable for half-open operations of similar products with pig feet.
Parameter
| Model | SG-350 |
| Size | 1400×800×1735mm |
| maximum pig trotters' height | 100mm |
| Maximum pig trotters' width | 30-100mm |
| The height of the workbench surface | 902mm |
| Motor power | 1.5kw |
| Rated rotational speed | 1440r/min |
| Feeding speed | 0.43m/s |
Description
How does the pig's trotter-splitting machine work?
1. Conveying principle: The pig's trotters are clamped by relying on the frictional force between the two rotating plastic pulleys. When the motor drives the pulleys to rotate, the pig's trotters will be driven to move forward.
2. Cutting principle: When the pig's trotters are conveyed to the position of the saw blade, they can be quickly and accurately cut into two halves.
Pig feet cutter details:
● Stainless steel protective cover: During the cutting process of the pig's trotters, due to the high-speed friction and cutting action between the bone saw blade and the pig's trotters, some broken bones, meat scraps, and other debris may splash out. The stainless steel protective cover can effectively block these flying materials.
The third function is safety protection, which prevents workers from coming into contact with dangerous components.
● Saw blade: The saw blade is made of high-quality materials and has a very sharp cutting edge. It can easily penetrate the hard bones and connective tissues of the pig's trotters and quickly and accurately cut the pig's trotters into two halves.

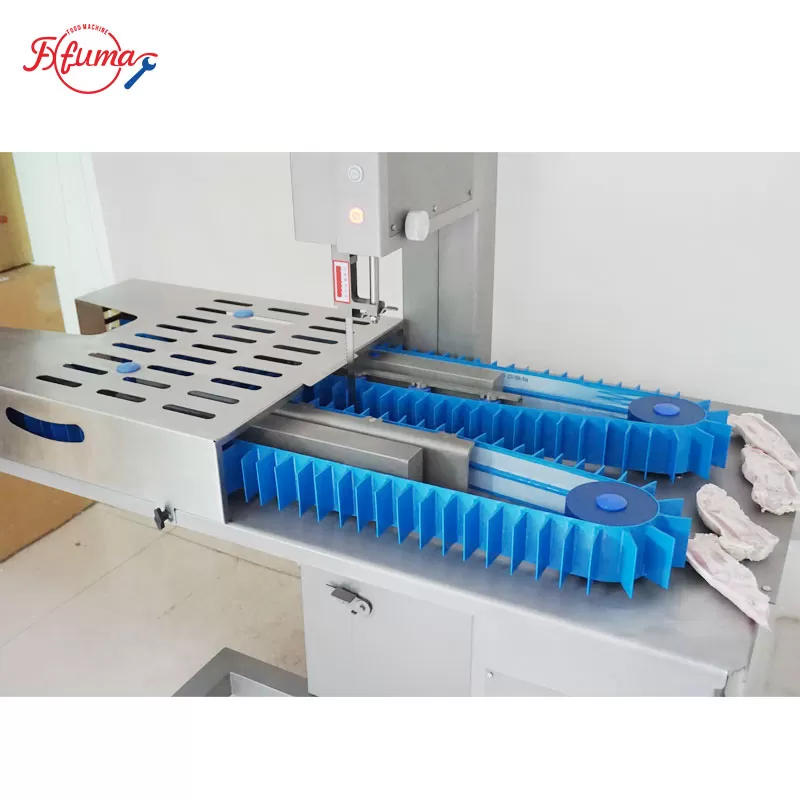

● Conveyor: The rotating pulleys are connected to the motor through a plastic conveyor belt. When the motor starts, it drives the pulleys to rotate. This rotation serves as the power source for pushing the pig's trotters to move.

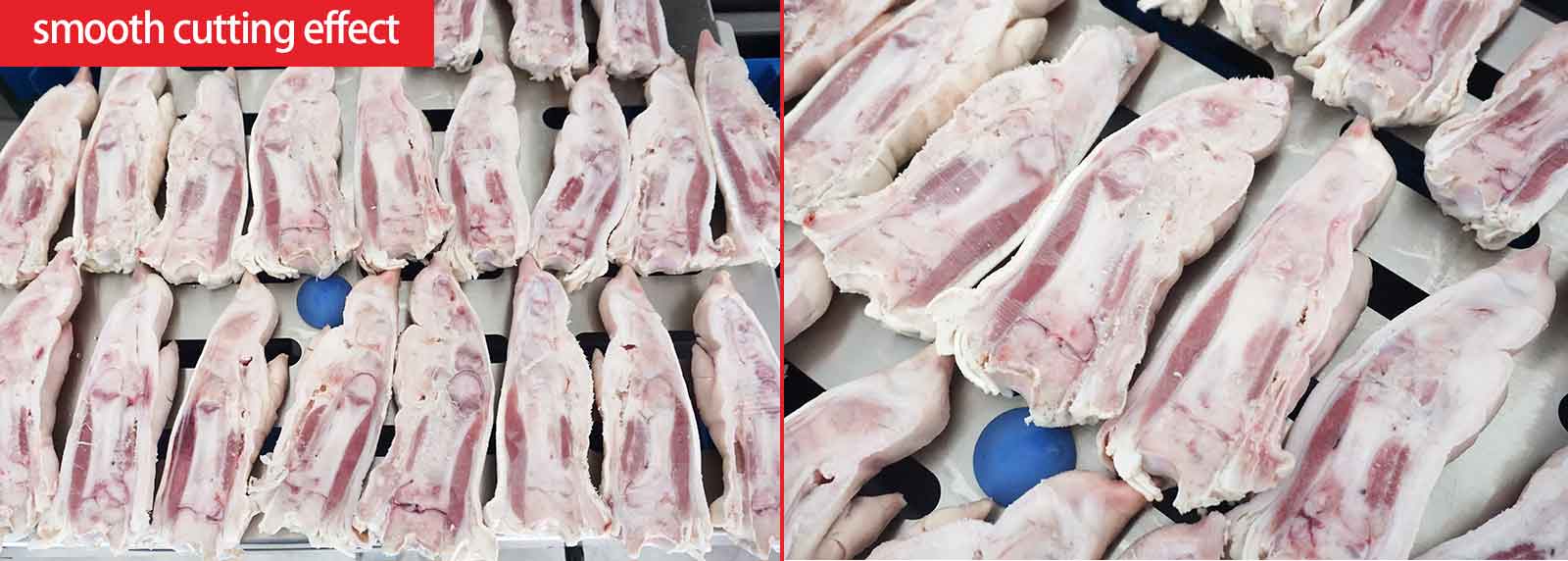

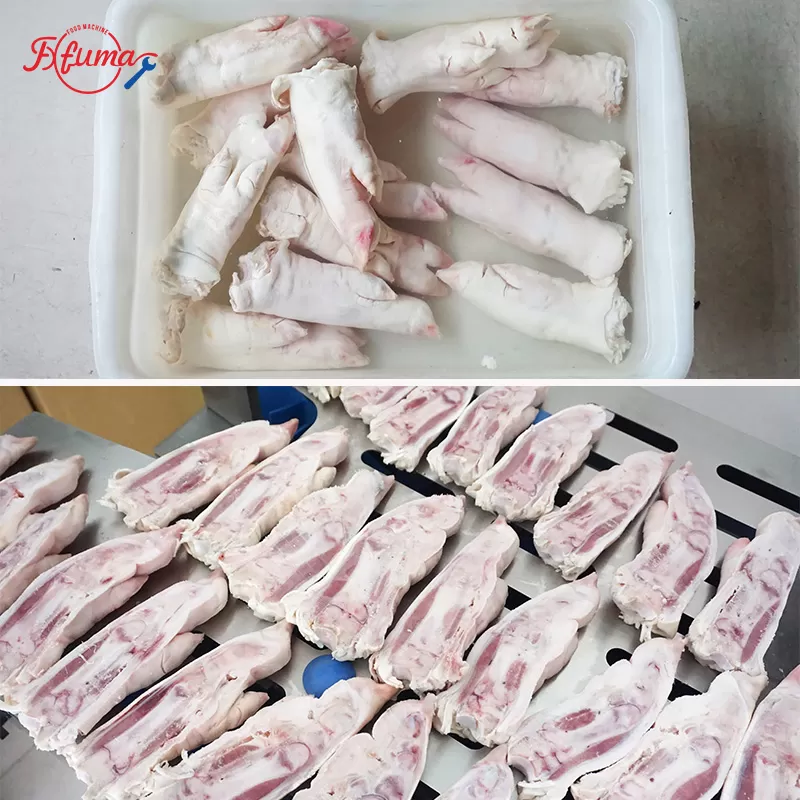

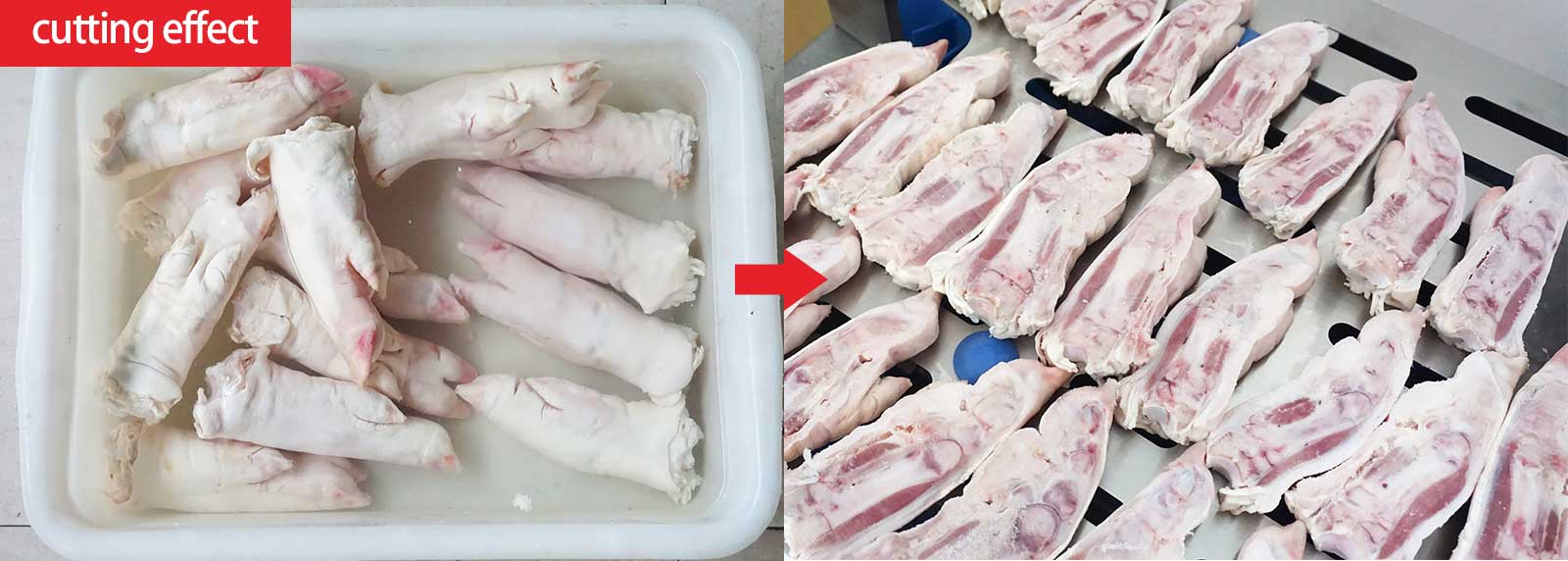

Cutting effect
1. It has a high cutting precision. The saw blade can accurately and evenly divide the pig's trotters that are moving forward along the predetermined cutting line into two halves.
2. The cutting surface is smooth. The saw teeth can effectively cut through the bones and muscle tissues of the pig's trotters while minimizing the tearing and damage to the cutting surface as much as possible. The design of the teeth of the saw blade enables the cutting process to be smoother, avoiding excessive squeezing and crushing of the bones, thus reducing the generation of bone scraps.
