Filleting & Deboning
The overall dimensions of the industrial fish fillet machine reach 1540*775*3300mm, and it weighs 350kg. The sturdy body design ensures stable operation and reduces vibration interference. In terms of core functions, it can accurately slice fish, quickly separate two pieces of fish meat from one fishbone, achieve standardized and precise processing, and guarantee the quality of the fish meat.
Specifications
| Model | FCM-333 |
| Voltage | 380V/220V 3P |
| Power | 1.5KW |
| Size | 1540*775*3300mm |
| Weight | 350kg |
| Functions | Slicing fish into 2 fillets and 1 bone |
| Capacity | 20-40pcs/min |
Description of Fish Filleting Machine
● It can process fresh fish and semi-thawed fish.
● Cut the fish into three pieces, remove the middle bone, and keep the fish meat.
● Applicable to a variety of common fish weighing 0.5 - 4kg, such as grass carp, sea bass, tilapia, catfish, etc.
● Made of 304 stainless steel, in line with food hygiene standards.
● The blades are made of imported materials.
● The blades are sharp, rust-proof, durable, and have a long service life.

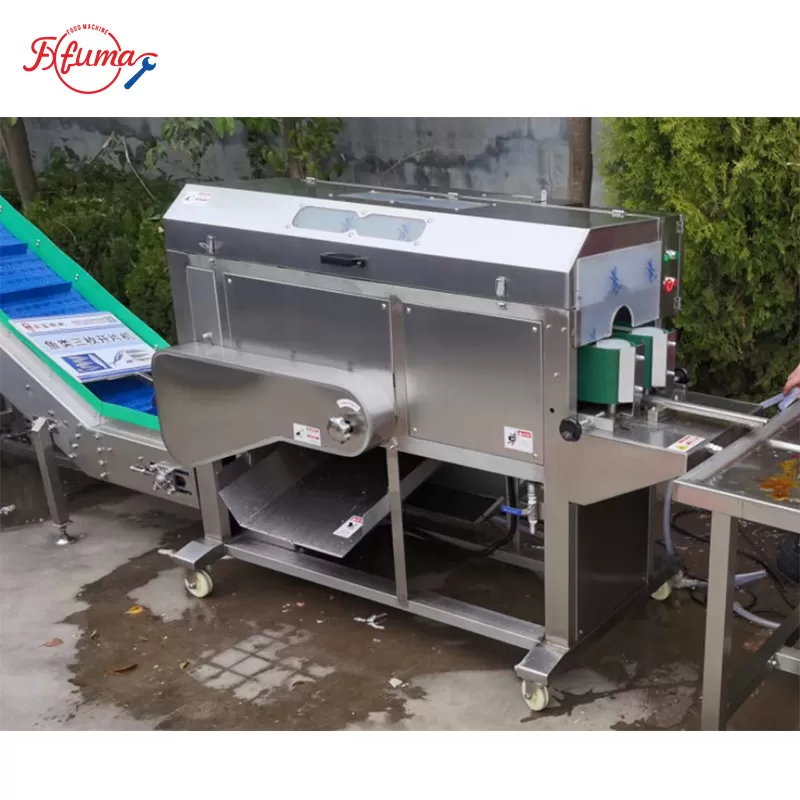

Details of the industrial fish fillet machine:
1. Large feeding port with clamping conveyor belt
2. Stainless steel blade
3. Fish bone discharge port
4. Fish fillets discharge port
Filleting effect: Slice fish into 1 bone and 2 fillets
Wide application:
Heavy-duty fish filleter machine is Suitable for different kinds of fish species like crap, tilapia, croakers, catfish, whitefish and so on.
