Griders & Mixers

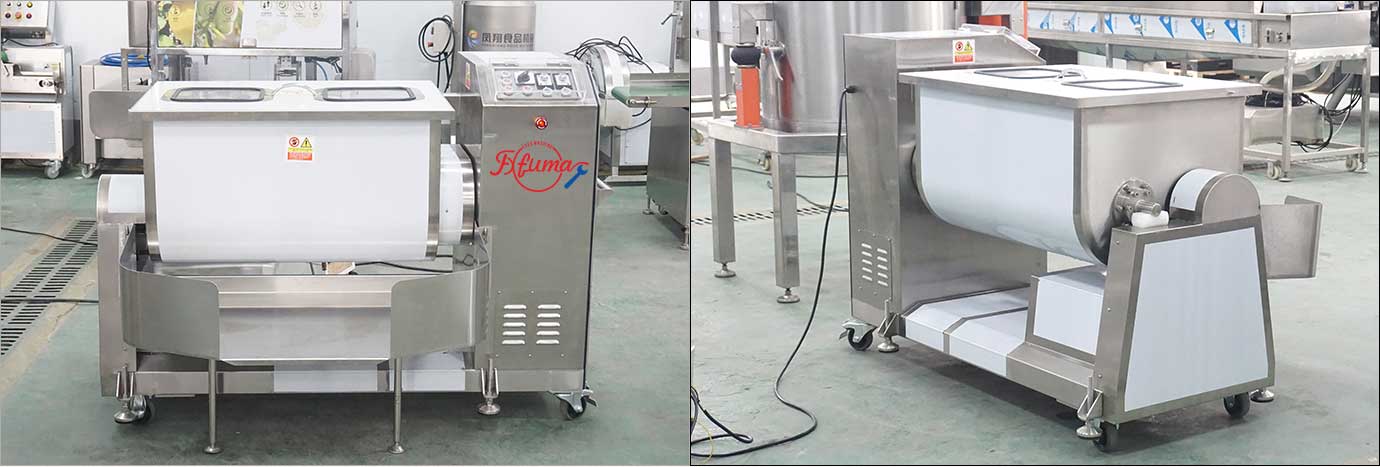

This dual-shaft meat mixer is perfect for initially blending emulsions as well as mixing ingredients for hamburger patties, meatballs, canned luncheon meat, and sausage meat. The efficient mixing operation and high-velocity rotation of its peripheral wings ensure an even dispersion of seasonings, additives, and liquids, while also facilitating the effective extraction of proteins.
Specification
| Model | FC-628-200L | FC-628-300L |
| Voltage | 3Phases,380V | 3Phases,380V |
| Power | 2.2KW(3P) | 3.75KW(5P) |
| Size | 1400*1200*1240mm | 1700*1200*1240mm |
| Capacity | 500--800kg/h | 800--1200kg/h |
Description
How does a double-shaft meat mixer work?
When the twin-shaft meat mixer is in operation, the two mixing shafts rotate in opposite directions, driving their respective mixing blades to stir the minced meat. During the rotation of the mixing blades, on the one hand, the minced meat moves axially and radially within the mixing tank, achieving macroscopic mixing of the materials; on the other hand, the shearing action of the blades enables the material particles to rub and collide with each other, achieving the mixing effect. For some materials with high viscosity, the ribbon-type blades can transport the materials from one end of the mixing tank to the other while the mixing shaft is rotating, and at the same time, carry out stirring and mixing, making the minced meat more evenly mixed.
Meat mixer details:
1. Cover with 2 transparent windows: The mechanical cover is equipped with two transparent viewing windows.
2. Dual-mixing shaft: The dual-axis design enables the materials to form a flow pattern within the mixing chamber, avoiding the occurrence of mixing dead zones for the materials, and ensuring that the minced meat and seasonings are fully and evenly mixed.
3. Large outlet: It is located at the bottom of the blender and serves as a passage for the discharged mixture of minced meat and seasonings that have been well blended. Its large design facilitates the quick and smooth discharge of materials, which can improve the discharging efficiency and reduce the residue of materials.
4. Controller: This is a simple and easy-to-understand operator, which is equipped with on and off buttons, a discharging button, a mixing speed meter, and so on.
PRODUCT CLASSIFICATION
Contact Us
+86 400-188-3313
+86 199 2706 5265
+86 758 278 8707
RELATED PRODUCTS
This meat grinder is versatile and suitable for processing pork, beef, fish for sausage, chili sauce, dumpling stuffing, meatballs, etc.
300L Heavy-duty vacuum meat mixer
In a vacuum, the vacuum minced meat tumbler rotates its drum, making the minced meat roll and be beaten. This vacuum environment removes air, stops oxidation, preserves color and nutrients, and boosts water retention and elasticity.

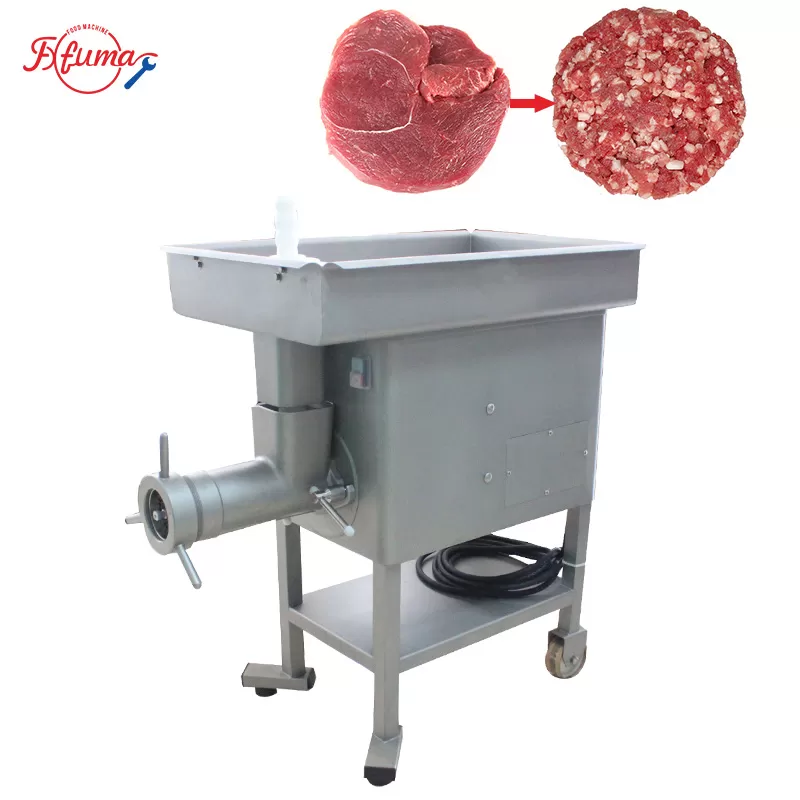

800-1000kg Industrial double-cutter grinding meat machine
